The black wire connects to the battery positive terminal through a circuit breaker to deliver operating power to the controller.

Kelsey hayes ke controller wiring diagram. Harnesses are available through all dealer resources. For 60 years hayes has manufactured the safest easiest to install and most reliable line of electronic trailer brake controllers available. Ask specifically for the hayes brake controller company hbc brand harnesses to match your controller. General motors service manuals this reference contains the following illustrations to help identify the different types of kelsey hayes abs components.

The brake controller monitors the vehicle s brake pedal and deceleration rate and calculates the correct amount of braking power to deliver at the trailer. Kelsey hayes ke controller wiring diagram manual e books kelsey trailer brake controller wiring diagram by bismillah. The blue wire carries the controller s output to the vehicle s trailer connector. If the wiring adapter you have is an aftermarket harness it should wire up color for color.

The four wires on trailer brake controllers are standardized so they always connect in the same way. Too much braking and the trailer. Special dual mated quik connect wiring harnesses are available for all hayes brake controllers fitted with a connector on the wire leads making connection a snap. I have a kelsey energizer brake controller the wires aint mark what goes to what i have a blue one to the right i have attached a picture of a diagram of how brake controllers wire to tow vehicles.

And the red wire connects to the cold side of the brake. Hayes prides itself on the belief that the dealer s knowledge of products coupled with the services they deliver is the key to success. In 2011 kelsey currently produces in cab electronic brake controllers which. Full 2758x2928 medium 235x150 large 640x679.

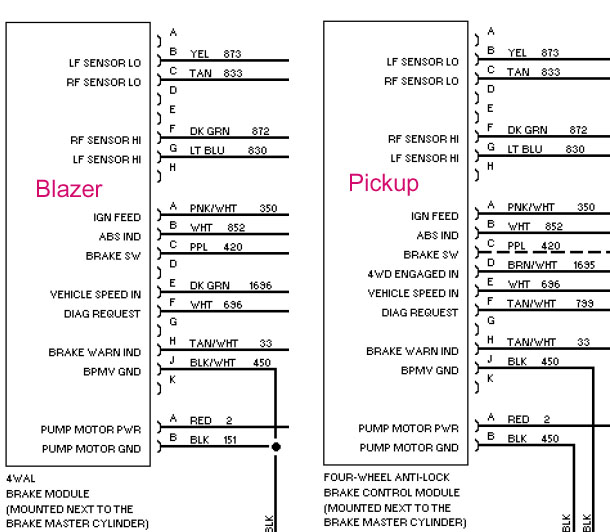

Kelsey hayes wiring diagram manual e books hayes brake controller wiring diagram the diagram offers visual representation of an electrical arrangement. For vehicles without a trailer towing package. Figure g2019 1 kelsey hayes ebc310 4wal system ecu figure g2019 2 kelsey hayes ebc4 4wal system connector pin configuration figure g2019 3 rwal control valve assemblies. On the other hand the diagram is a simplified version of the structure.

Without wiring the controller plug in the harness. It makes the process of assembling circuit simpler. The white wire is ground. Refer to the wiring diagram in figure 4.

Installing a kelsey energize brake controller in your vehicle will provide power for your trailer s electric brakes. To be safe i would suggest using a circuit tester such as part 40376 to verify the connections.
